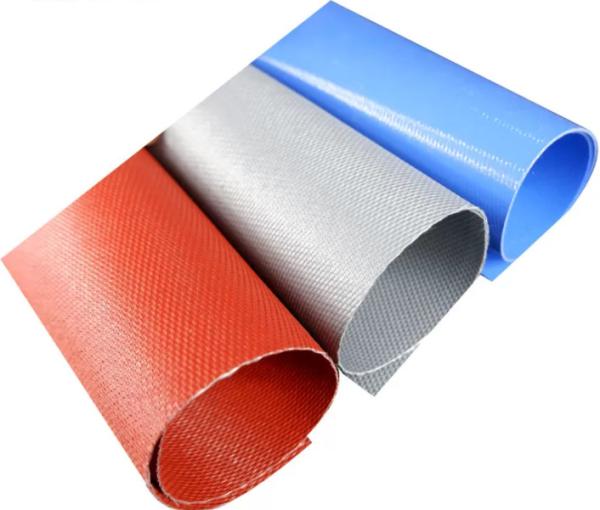

1MM Heavy Coated Silicone Rubber Impregnated Fiberglass Thermal Fabric Cloth

1MM Heavy Coated Silicone Rubber Impregnated Fiberglass Thermal Fabric Cloth

1. Descriptions

Silicone impregnated glass fiber fabric is highly flexible and provides an excellent protective fabric for insulation blankets and other heat-resistant components. The silicone coating increases water and oil resistance, and has low smoke and flame resistance. Although the base fiberglass fabric has a rated temperature of 1000°F / 550°C, the silicone coating has a rated continuous temperature of 550°F / 287°C. Silicone coated glass fiber fabric has good flexibility, puncture resistance and tear resistance. The dry surface of this fabric will not stick to the sewing table, so it is easier to sew, drape and handle.

2. Silicone-coated Fiberglass Cloth Product Data Sheet

3. Application

Work in the oil medium of low and high temperature,with good sealing perfomance,which is widely apply to produce seals in the electronic,pharmacy and chemical industry.

4. Features

• Fire Proof
• High Strength
• Anti-Firction
• Chemical Resistance
• Heat Resistance

5. Factors of Scoring In Quality Control

• Fabric Quality

1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.

• ​Packaging :

1. Jiangnan oven Fiberglass Cloth is wound into a roll on a cardboard inner tube with an inside diameter of 10cm (4"). Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed horizontally on a pallet, which is stretch wrapped.

• High Quality:

1. The fiberglass yarns is supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,

• Low Price:

1. Our material factory locates next to a power station,so we produce the glass fiber with low electricity and low water cost.

Silicone Impregnated Fiberglass Fabric

1mm Silicone Coated Fiberglass Fabric

Satin Weave Fiberglass Fabric

1MM Heavy Coated Silicone Rubber Impregnated Fiberglass Thermal Fabric Cloth Images
