Thermal Insulation Aluminum Fiberglass Cloth Plain Weave Chemical Resistant

Name: Thermal Insulation Aluminum Fiberglass Cloth Plain Weave Chemical Resistant
Brand: Jiangnan
Price: 1 USD

China Thermal Insulation Aluminum Fiberglass Cloth Plain Weave Chemical Resistant wholesale

Brand Name : Jiangnan

Model Number : Aluminium Foil Fiberglass Fabric

Certification : ISO 9001 2015

Place of Origin : CHINA

MOQ : 500 Meters

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Square Meters per day

Delivery Time : 14 Days after the Payment

Packaging Details : Fire Retardant Aluminium Heat Barrier Foil Coated Fiberglass Fabric 1. Each roll use waterpoof bag then Pallet 2. Bulking package

Product Name : Aluminum Foil Acrylic Coated Fiberglass Fabric

Weight : 620g/m²

Weave Structure : Plain Weave

Fiberglass Cloth Thickness : 0.6mm

Application : Pipe protection

Good Feature : Excellent

Working Temperature : Aluminium/660℃, Fiberglass/550℃, Glue/300℃

Contact Now

High Quality Aluminium Fiberglass Fabric For Thermal Insulation

1. Description:

The mirror-like molten aluminum coating of this high-temperature fabric dissipates heat and provides excellent performance. Compared with films and foils, Jiangnan provides a more durable reflective heat shield that can be bent and shaped without creases or stress cracks, and can withstand higher temperatures. This fabric only provides a reflective molten aluminum coating, impregnated chemically resistant treatment or moisture barrier.

Working Temperature: Aluminium is 660 degrees, Fiberglass Cloth is 550 degrees, Glue is 300 degrees

Product Construction
Materlal Composition	Material Description	Value Standard
Foil	Aluminium	9&18 Micron
Adhesive	Pressure Sensitive Oily Adhesive and Water Base Glue	Adjust according to different thickness of base fabric
Fiberglass Cloth	Each difference Thickness Cloth	75-2000g

2. Table 2: Data Sheet of Aluminium Fiberglass Cloth

AL-FW600
Item Model		Aluminium Foil Fiberglass Fabric		Test Standard
Weave Structure		Even grain check
Thread Count	Warp	15 per cm	38 per inch	GB/T 7689.2-2013
	Weft	15 per cm	38 per inch
Final Product Weight		600 g/ m2	17.6 OZ/YD2	ASTM D3776-96
Thickness		0.55 mm	0.022 inch	ASTM D1777-96
Coating		Aluminium foil/Metalized film + PET
Coating Thickness		9micron/18micron	0.28/0.7/0.98mil
Color		Silver
Break Strength	Warp	6000 N/5cm	666 lbs/inch	GB/T 7689.5-2013
	Weft	5000 N/5cm	555 lbs/inch
Width		100cm	40 inch
		120cm	48 inch
		150cm	60 inch
SERVICE TEMPERATURE		Fiberglass is 550℃, while mucilage is 300℃
Flame Resistance		Non-Combustible Cloth
Advantages		Radiant Thermal Reflective

3. What is the Aluminium Foil Fiberglass Cloth Application?

This kind of raw material is very suitable for expansion joints, heat shields, gaskets, etc

4. Product Features:

Excellent thermal insulation materials of the steam heating pipelines
sound-proof materials in construction
Protctive layer of glass woll blanket with excellent fire resistance function

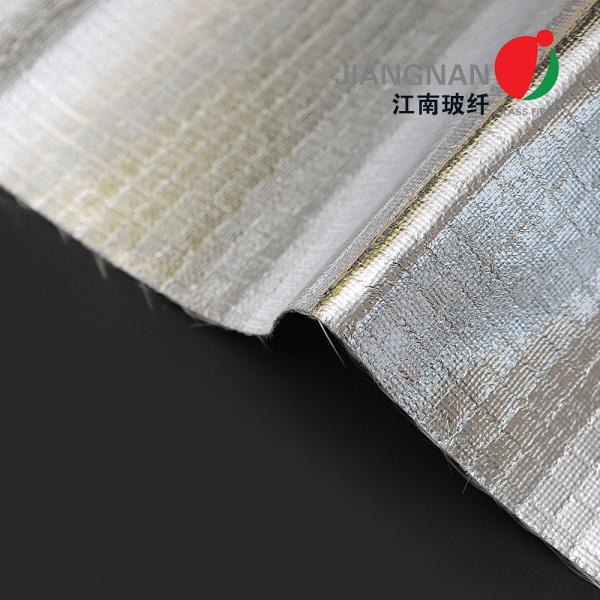

5. Detail images for Aluminium Foil Cloth

Thermal Insulation Aluminum Fiberglass Cloth Plain Weave Chemical Resistant

6: Other Related Products

Item no.	Weave	Density per cm	Weight g/m2	Thickness	Aluminium Foil Thickness	Tensile Strength
		Density per cm				N/5cm
		Warp & Weft				Warp & Weft
AL75	Plain	12*8	75	0.1mm	7Micron	380*370
AL7628	Plain	18*12	200g/m2	0.2mm	7Micron	2025*1620
AL3732	3x1 Twill	18*12	430g/m2	0.43mm	7/18Micron	6000*4500
ALFW600	Double Plain	15*15	600g/m2	0.55mm	7/18Micron	6000*5000
AL2025	Plain	8*5.7	610g/m2	0.75mm	7/18Micron	2025*1216
AL-M30	Plain	6*3.8	1020g/m2	1.2mm	7/18Micron	3000*2200
AL-3784	Satin	18*13	880g/m2	0.9mm	7/18Micron	8000*6000
Other thickness and weight can also be customized according to your Requirement 75g<Weight<2000g 0.1mm<Thickness<3mm
