Heat Insulation Blanket 0.4mm Silicone Coated Fiberglass Silicone Coated Glass Fiber Fabric
1. Description:
What is silicone coating fiberglass cloth?
0.4mm thickness 3732 fiberglass cloth with silicone coating is a woven fiberglass cloth coated with one side silicone rubber. It is flexible, light to medium-weight fabric for removable insulation blankets, jackets, covers, heater insulation blankets, turbine covers, welding curtains, welding blankets, fireproof curtains, and fire barriers.
Type: E-glass
Coating: 130g on each side
Structure: silicone+glass fiber
Weight:17oz/yd2
Flammability: ≤25%
Thickness: 0.45mm
Weave: Plain
Lifetime: 10 Years in a normal environment
Dielectric Constant: 3-3.2
Breakdown Voltage: 20-50 VK/MW
2. Technique Data Sheet
| 3732 Silicone Coating Fiberglass Cloth |
| Item Model | 3732 Silicone Coating Cloth |
| Description | E-glass Industrial Fabric |
| Weave Structure | 1/3 Twill Weave |
| Cloth Weight | 430gsm |
| Silicone Coating Weight | 160g/m2 |
| Thickness | 0.43mm |
| Yarn Type | Warp | EC9 68 1*2 |
| Weft | EC9 68 1*2 |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm |
| Break Strength | Warp | 700N/cm |
| Weft | 600N/cm |
| LOI | < 5% |
| Working Temperature | Basic fabric 550 ºC, Silicone coating 260 ºC. |
| Color | Black, Grey, Red |
| Fire Resistance | Non-Flame |
3. Much More Related Products
How to choose Knife Coating Silicone Coating fiberglass fabric?
| Knife Coating Silicone Coating Differences between Premier and Industrial Quality |
| | | Premier Quality | Industrial Quality |
| 1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) |
| 2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber |
| 3 | Appearance | Shiny and Tacky | Dull but Smooth |
| 4 | Performance | Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances |
| 5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets |
| Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| E7628-LG1 | 0.2mm | 230 | Plain |
| E7628-LG2 | 0.23mm | 280 | Plain |
| E3732-LG1 | 0.4mm | 510 | Twill |
| E3732-LG2 | 0.45mm | 590 | Twill |
| E666-LG1 | 0.6mm | 750 | Stain |
| E666-LG1 | 0.7mm | 850 | Satin |
| E3784-LG1 | 0.8mm | 950 | Satin |
| E3784-LG2 | 0.9mm | 1050 | Satin |
| Other Thickness and Weight can be Customized |
| Industrial Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| E7628-SG1 | 0.2mm | 230 | Plain |
| E7628-SG2 | 0.23mm | 280 | Plain |
| E3732-SG1 | 0.4mm | 510 | Twill |
| E3732-SG2 | 0.45mm | 590 | Twill |
| E666-SG1 | 0.6mm | 750 | Stain |
| E666-SG1 | 0.7mm | 850 | Satin |
| E3784-SG1 | 0.8mm | 950 | Satin |
| E3784-SG2 | 0.9mm | 1050 | Satin |
| Other Thickness and Weight can be Customized |
4. Silicone Coating Cloth Features
High and low-temperature resistance, -50C to 550C, fireproof.
Thermal insulation, reducing heat loss and increasing efficiency.
Abrasion resistance, durability, and high strength.
Easily sewn, cut, and fabricate.
Weathering proof.
Chemical resistance, waterproof, and oilproof.
Colors can be made as requested, grey, blue, green, white, etc.
5. Application
Silicone-coated fiberglass fabric. With a high temperature, fire retardant, insulation, corrosion resistance, anti-aging, and other features. Silicone-coated fiberglass fabric is widely used in electrical insulation, as non-metallic compensator, flexible connectivity, and as a fire blanket, fire retardant curtain temperature materials have also been used in building sealed, high-temperature corrosion conveyor belt and other fields.

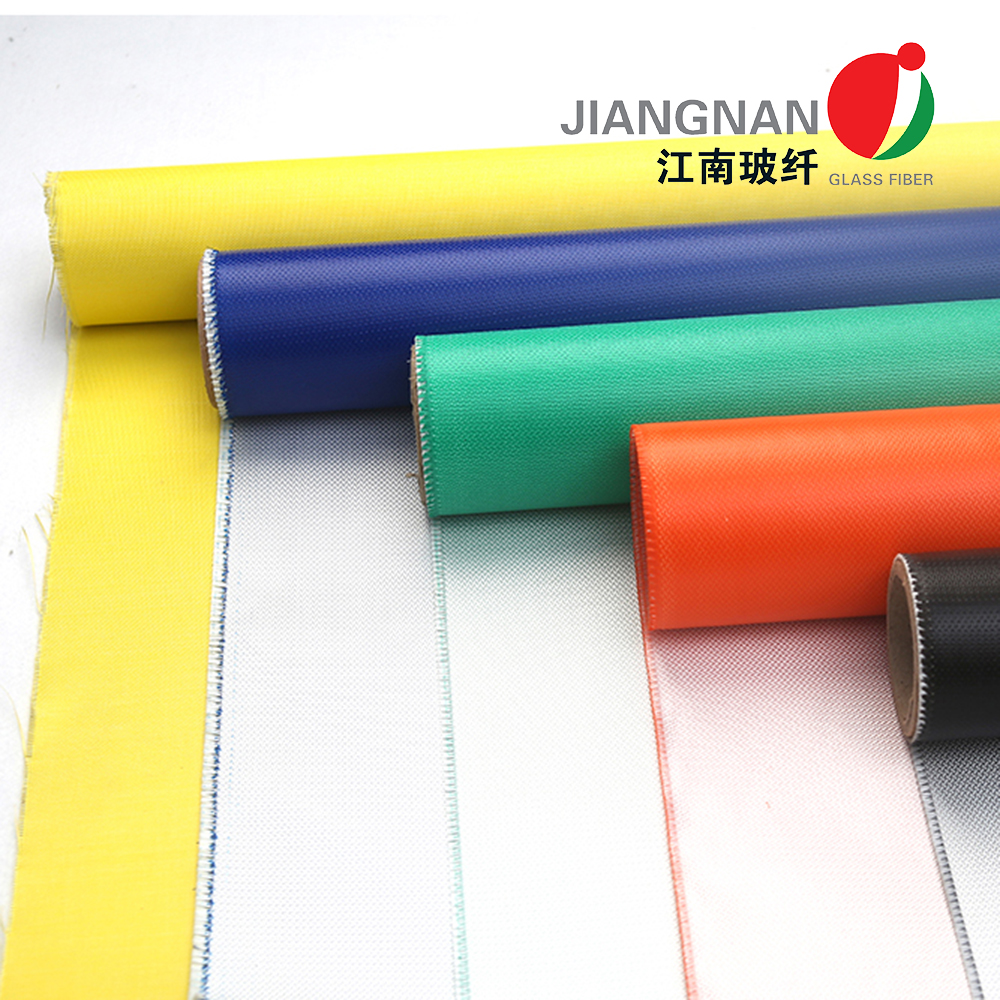

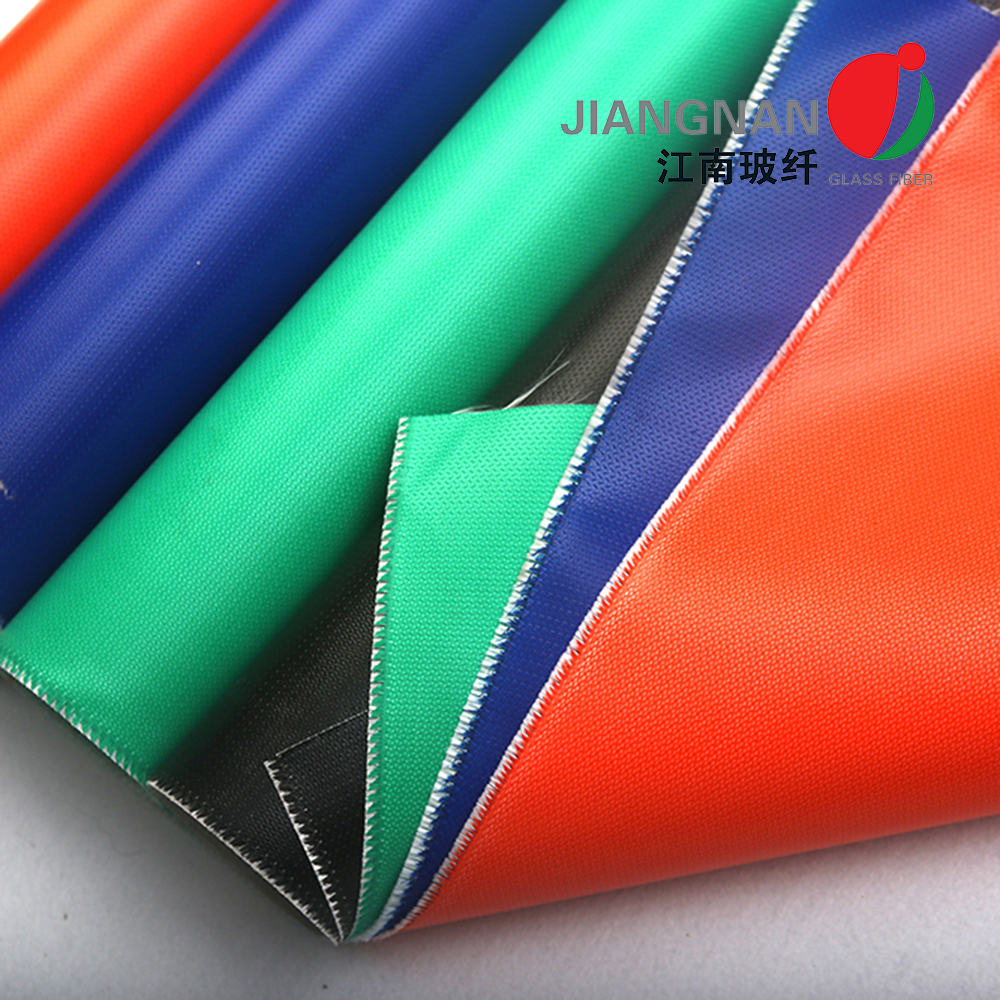

6. More Images for Coated Fiberglass Cloth
7. Our Production Line
Product Tags:
|
|

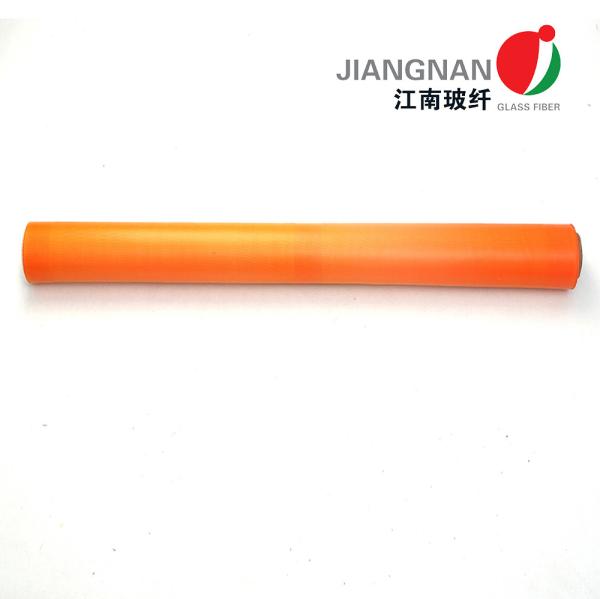

0.4mm Silicone Coated Fiberglass Fabric Heat Insulation Blanket Images
|
